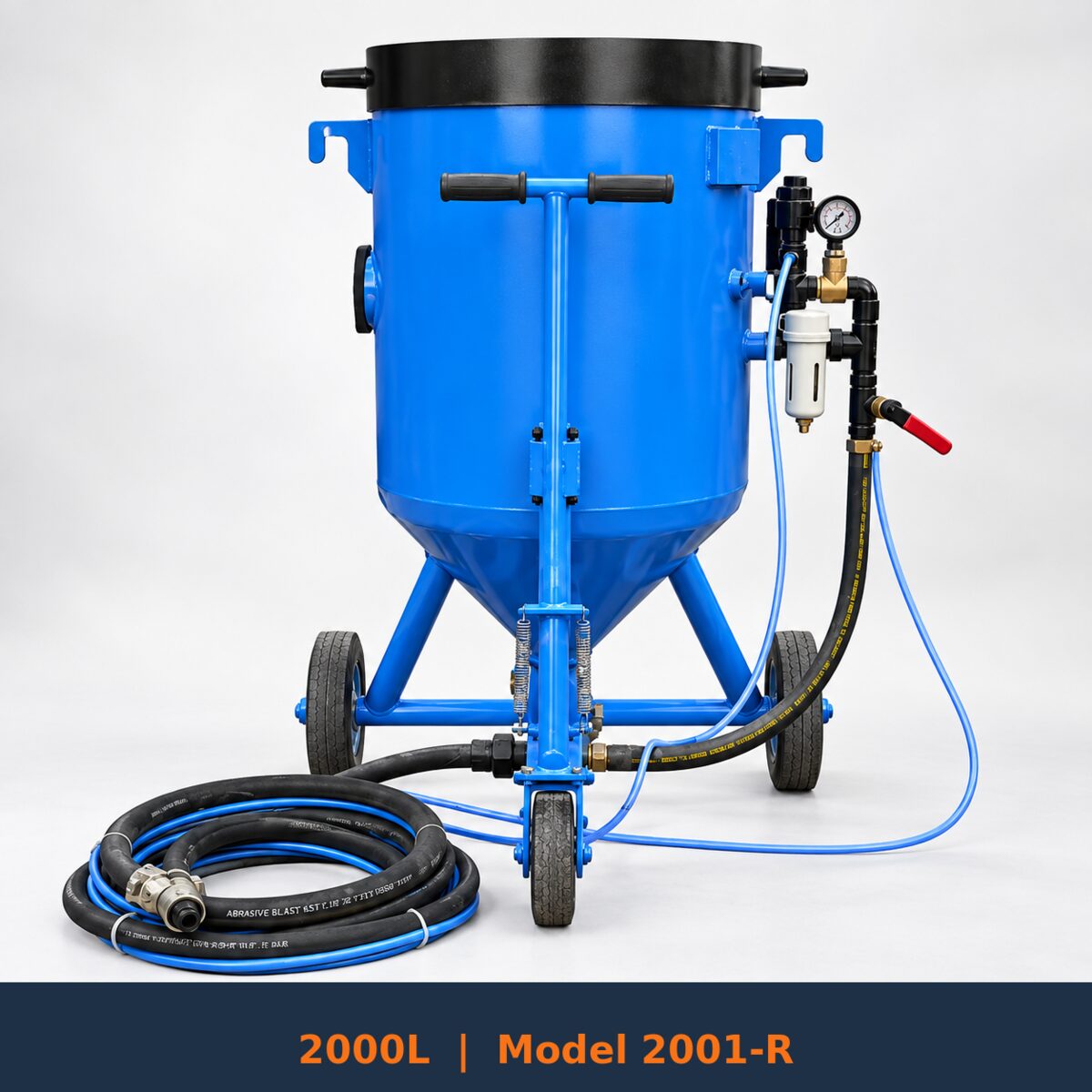

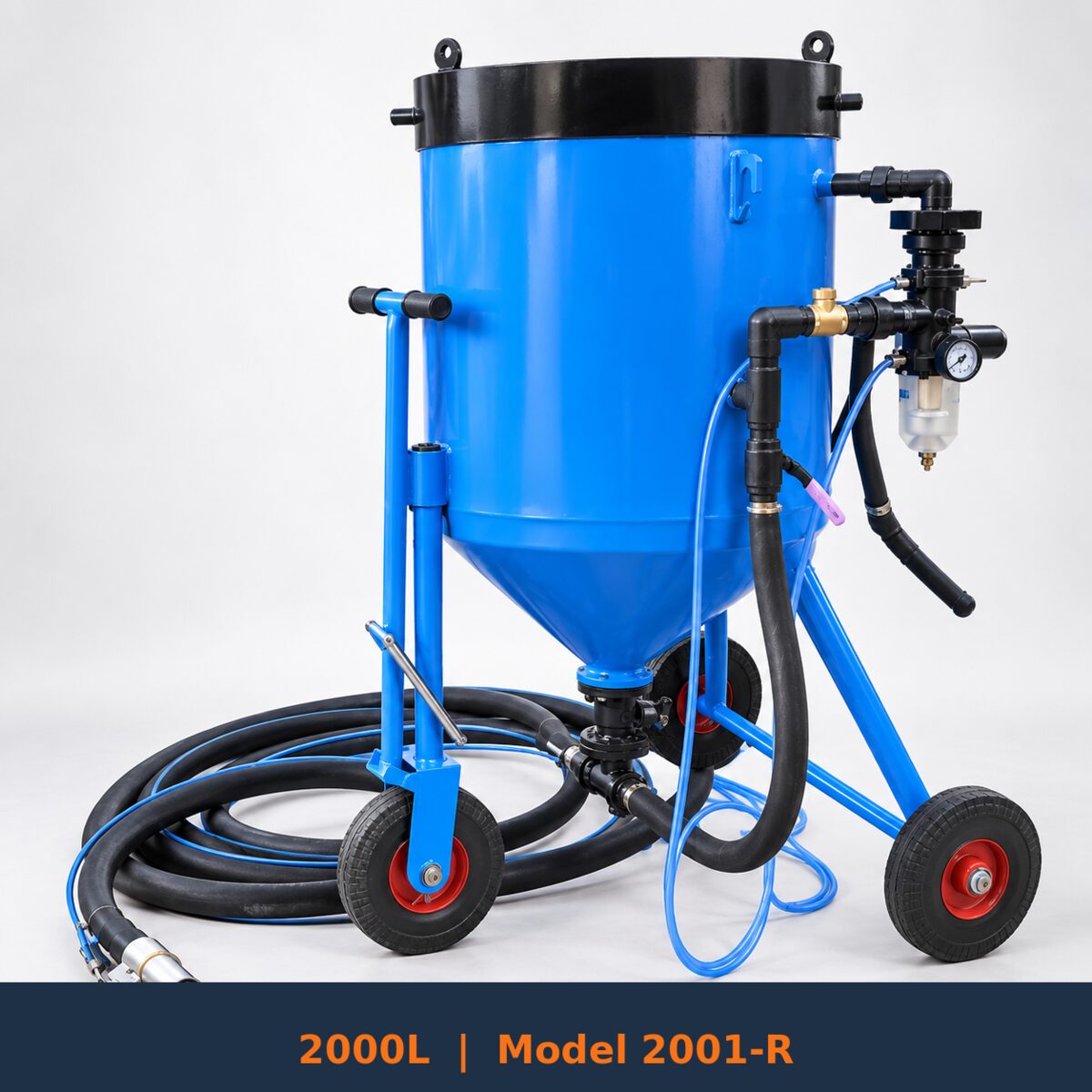

Blast Pot 2000L (Model 2001-R)
Maximum capacity pressure blast pot with 2000L metallic capacity, 920L sand capacity, 20-25 sq.m/hr cleaning rate. For the largest projects.
Home / Blasting Machines / Blast Pot 2000L (Model 2001-R)
Machine
Portable pressure blast pot
Use
Ship hulls, large storage tanks, industrial plants
Industry
Shipbuilding, oil & gas, power generation
How It Works
Compressed air pushes abrasive media from the pressure pot through a 10m blast hose and 12mm nozzle onto the surface.
The Model 2001-R is our largest blast pot, built for the most demanding industrial applications. Its massive 2000L capacity delivers maximum productivity with minimal downtime.
Technical Specifications
| Metallic Capacity | 2000 Kg |
| Sand Capacity | 920 Kg |
| Volume | 568 L |
| Height | 2140 mm |
| Diameter | 870 mm |
| Weight | 550 Kg |
| Nozzle | 12mm |
| Hose ID | 38mm |
| Hose Length | 10m |
| Cleaning Rate | 20-25 sq.m/hr |
| Air Req | 7.08 m³/min (300 CFM) |
Also needed for this job
Screw Air Compressors (CK & XL Series)
Rotary screw compressors, 10-175 HP (CK 10-50, XL 60-175), for blasting, painting and plant air. Permanent-magnet motor, 1:1 drive, 10 bar. Boss resale.
Blast Hose (Rubber, 19mm ID)
Heavy-duty rubber blast hose with conductive lining for safe, efficient media delivery.
Tungsten Carbide Blast Nozzle
Tungsten carbide blast nozzle for long life and consistent blast pattern.

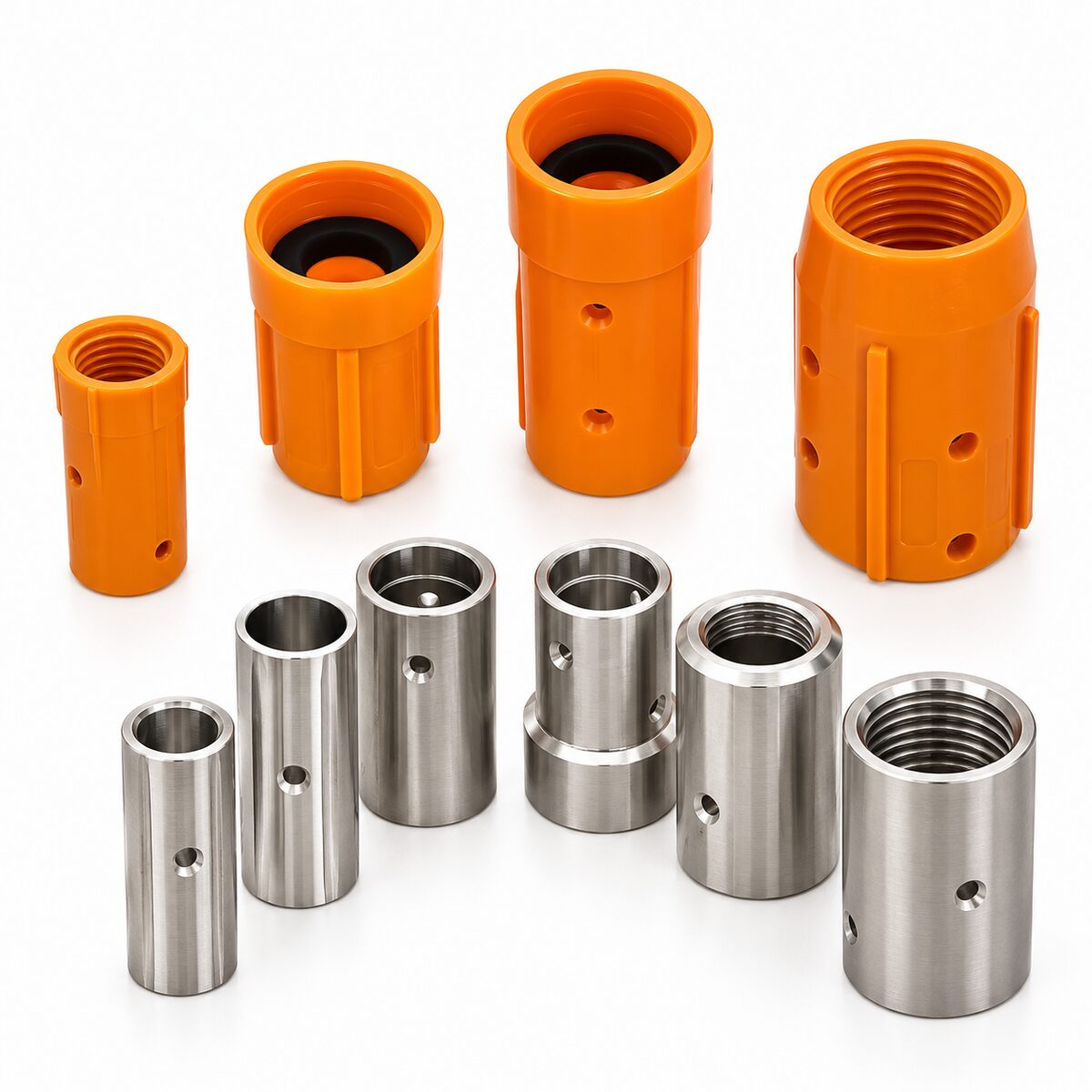

Blast Nozzle Holder (Polyurethane + Steel)
