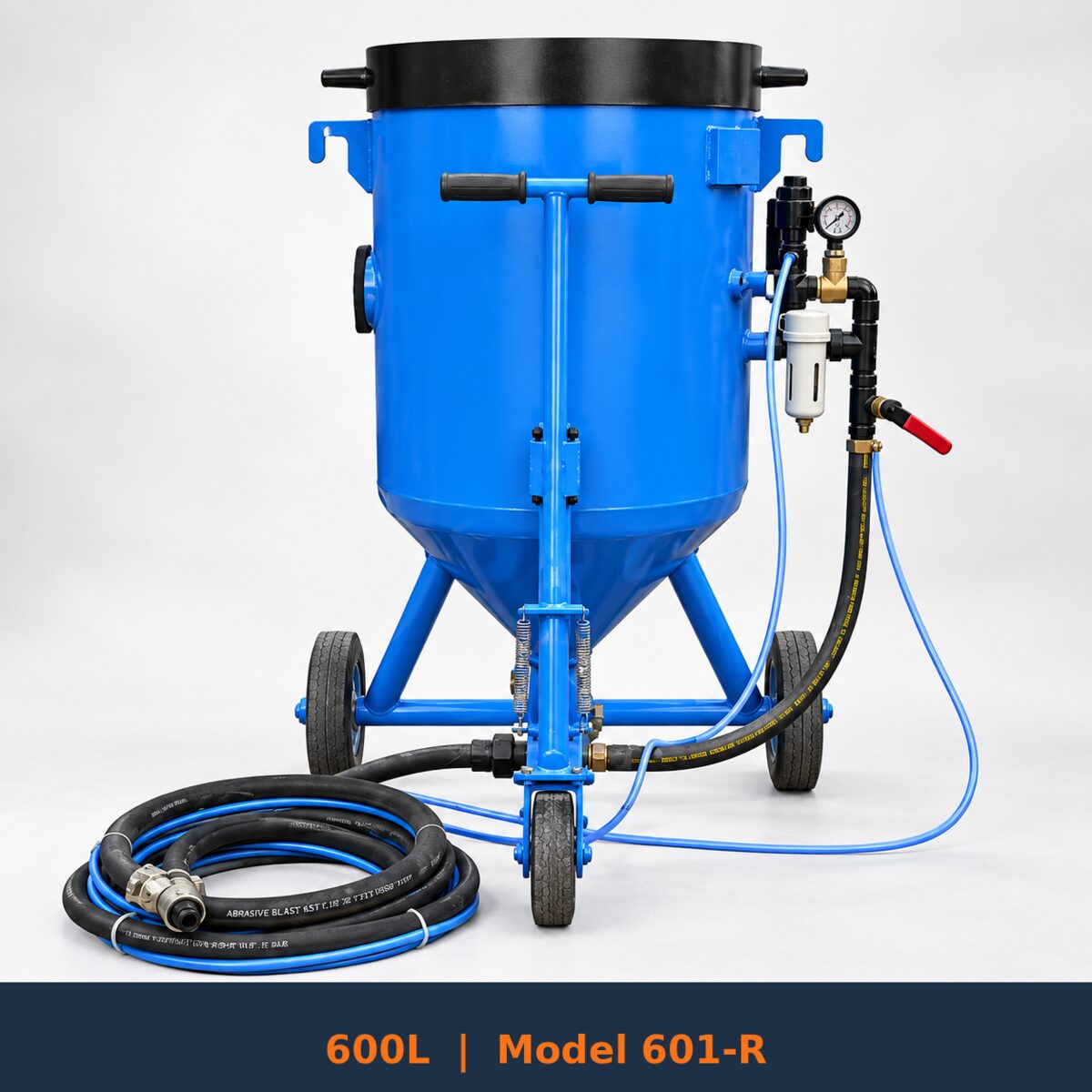

Blast Pot 600L (Model 601-R)
Large pressure blast pot with 600L metallic capacity, 275L sand capacity, 11-15 sq.m/hr cleaning rate. Extended capacity for big jobs.
Home / Blasting Machines / Blast Pot 600L (Model 601-R)
Machine
Portable pressure blast pot
Use
Large structures, tanks, extended blasting operations
Industry
Shipbuilding, oil & gas, power plants
How It Works
Compressed air pushes abrasive media from the pressure pot through a 7.5m blast hose and 8mm nozzle onto the surface.
The Model 601-R provides extended blasting time with its 600L capacity. Ideal for large structures and tanks where downtime for refilling must be minimized.
Technical Specifications
| Metallic Capacity | 600 Kg |
| Sand Capacity | 275 Kg |
| Volume | 172 L |
| Height | 1500 mm |
| Diameter | 615 mm |
| Weight | 200 Kg |
| Nozzle | 8mm |
| Hose ID | 25mm |
| Hose Length | 7.5m |
| Cleaning Rate | 11-15 sq.m/hr |
| Air Req | 3.85 m³/min (135 CFM) |
