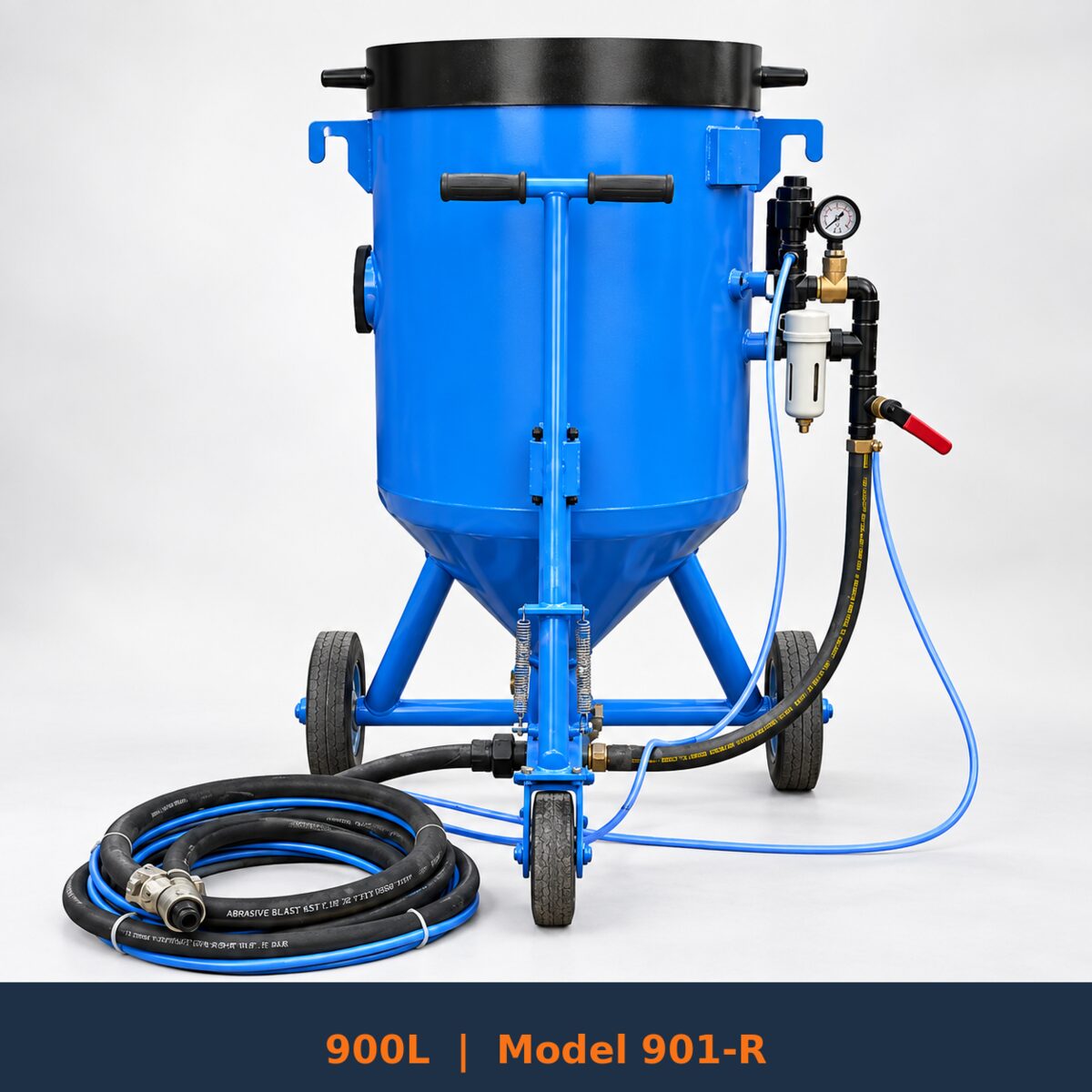

Blast Pot 900L (Model 901-R)
High-capacity pressure blast pot with 900L metallic capacity, 400L sand capacity, 15-19 sq.m/hr cleaning rate. Optimized for large structures.
Home / Blasting Machines / Blast Pot 900L (Model 901-R)
Machine
Portable pressure blast pot
Use
Large structural blasting, bridges, industrial equipment
Industry
Infrastructure, power plants, heavy engineering
How It Works
Compressed air pushes abrasive media from the pressure pot through a 10m blast hose and 10mm nozzle onto the surface.
The Model 901-R offers optimized capacity for large structural blasting. Its 900L capacity and 10m hose provide excellent productivity on big jobs.
Technical Specifications
| Metallic Capacity | 900 Kg |
| Sand Capacity | 400 Kg |
| Volume | 255 L |
| Height | 1610 mm |
| Diameter | 615 mm |
| Weight | 220 Kg |
| Nozzle | 10mm |
| Hose ID | 32mm |
| Hose Length | 10m |
| Cleaning Rate | 15-19 sq.m/hr |
| Air Req | 7.08 m³/min (250 CFM) |
