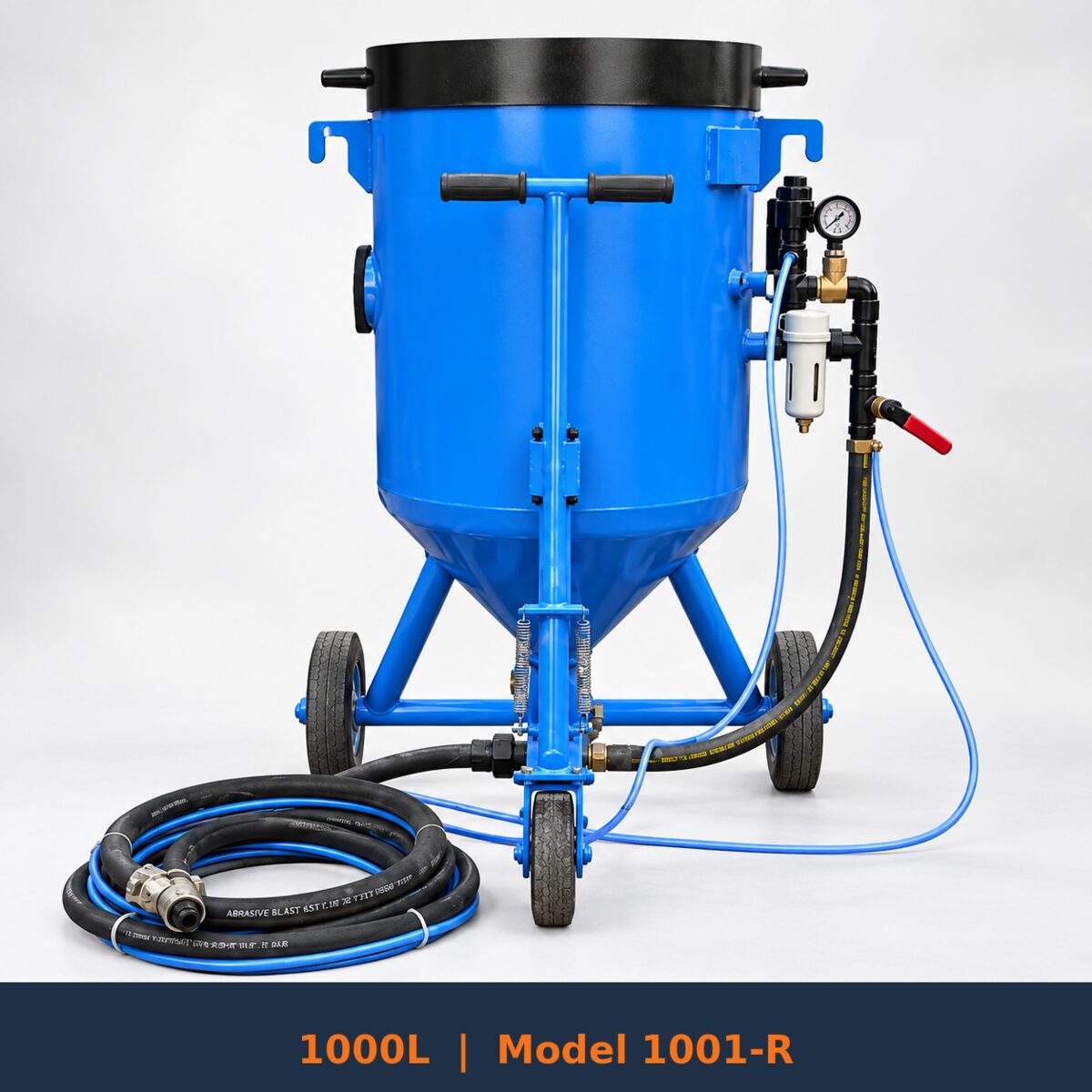

Blast Pot 1000L (Model 1001-R)
Extra-large pressure blast pot with 1000L metallic capacity, 460L sand capacity, 15-19 sq.m/hr cleaning rate. Maximum productivity.
Home / Blasting Machines / Blast Pot 1000L (Model 1001-R)
Machine
Portable pressure blast pot
Use
Large-scale industrial blasting, ship hulls, storage tanks
Industry
Shipbuilding, oil & gas, power generation
How It Works
Compressed air pushes abrasive media from the pressure pot through a 10m blast hose and 10mm nozzle onto the surface.
The Model 1001-R is our highest capacity blast pot, designed for maximum productivity on large-scale industrial projects. Its 1000L capacity minimizes refill downtime.
Technical Specifications
| Metallic Capacity | 1000 Kg |
| Sand Capacity | 460 Kg |
| Volume | 284 L |
| Height | 1610 mm |
| Diameter | 760 mm |
| Weight | 245 Kg |
| Nozzle | 10mm |
| Hose ID | 32mm |
| Hose Length | 10m |
| Cleaning Rate | 15-19 sq.m/hr |
| Air Req | 7.08 m³/min (250 CFM) |
