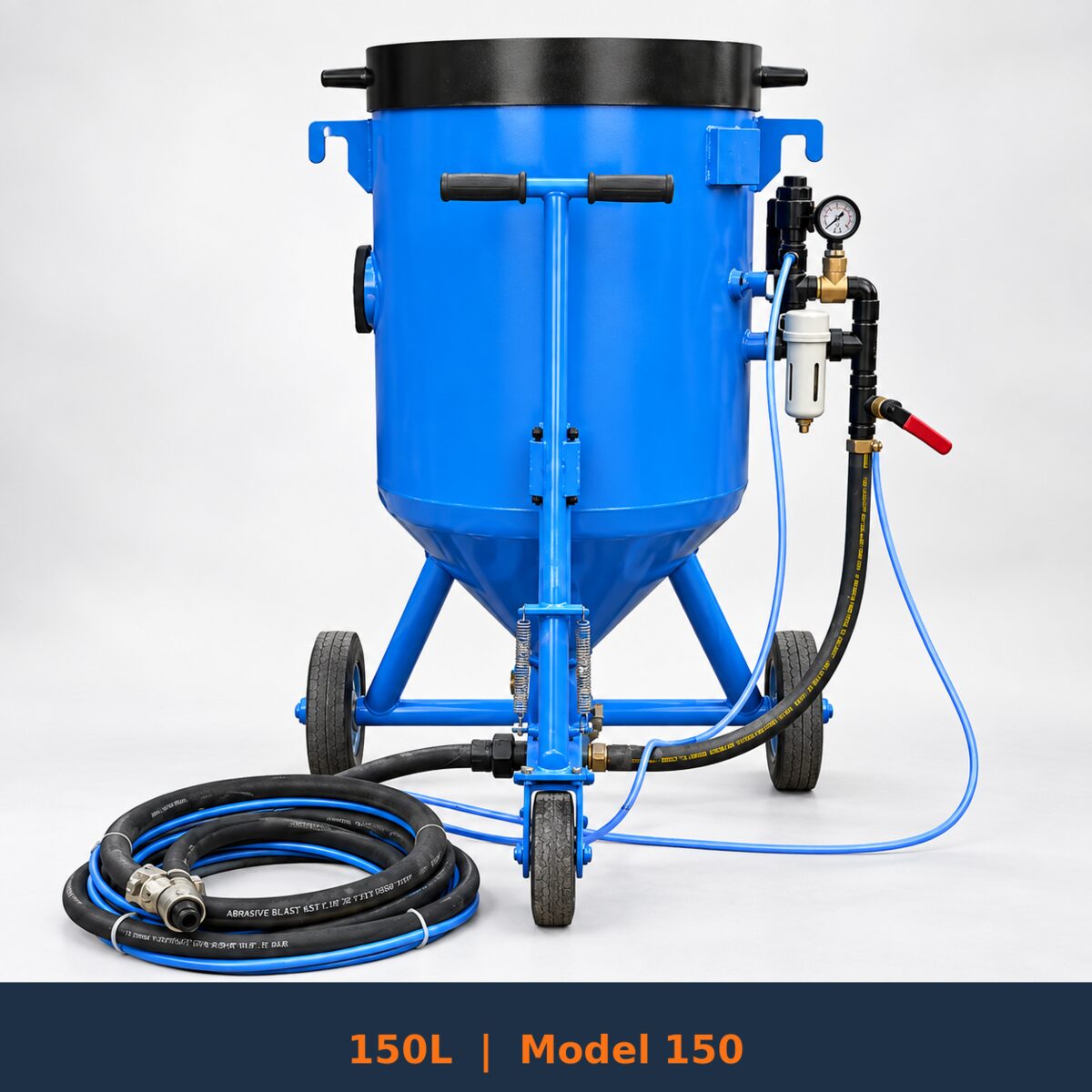

Blast Pot 150L (Model 150)
Portable pressure blast pot with 150L metallic capacity, 65L sand capacity, 3-4 sq.m/hr cleaning rate. Ideal for small to medium on-site work.
Home / Blasting Machines / Blast Pot 150L (Model 150)
Machine
Portable pressure blast pot
Use
Small on-site blasting, spot repair, touch-up work
Industry
Construction, maintenance, small fabrication
How It Works
Compressed air pushes abrasive media from the pressure pot through a 5m blast hose and 5mm nozzle onto the surface.
The Model 150 is our most portable blast pot, perfect for small to medium on-site blasting operations. Its lightweight design and 5m blast hose provide excellent maneuverability.
Technical Specifications
| Metallic Capacity | 150 Kg |
| Sand Capacity | 65 Kg |
| Volume | 42 L |
| Height | 1110 mm |
| Diameter | 360 mm |
| Weight | 95 Kg |
| Nozzle | 5mm |
| Hose ID | 19mm |
| Hose Length | 5m |
| Cleaning Rate | 3-4 sq.m/hr |
| Air Req | 1.27 m³/min (45 CFM) |
