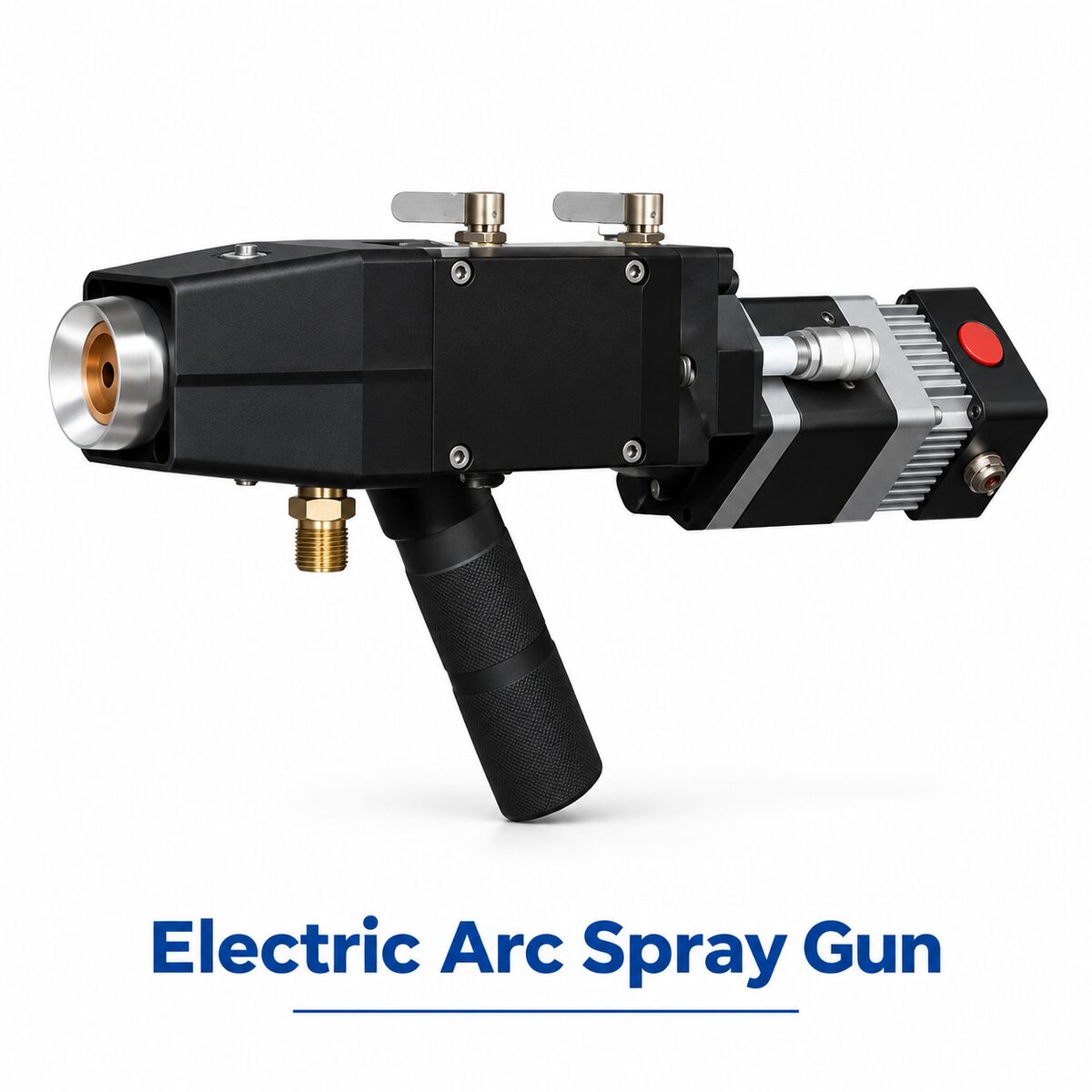

Electric Arc Spray Gun
Electric arc metallizing gun for zinc, aluminum and other metal coatings. High deposition rate, low cost.
Home / Coating & Metallizing Guns / Electric Arc Spray Gun
Machine
Electric arc wire spray gun
Use
Corrosion protection coating on steel structures
Industry
Marine, bridges, power towers, pipelines
How It Works
Two metal wires are fed into the gun where an electric arc melts them, then compressed air atomizes and sprays the molten metal onto the surface.
Zinc metallizing provides long-life corrosion protection for steel structures in marine, industrial and infrastructure applications.
Technical Specifications
| Wire | 2.5-3.0mm |
| Current | 100-300A |
| Voltage | 28-32V |
| Deposition | 15-25 kg/hr |
| Coating Thickness | 50-500 microns |
