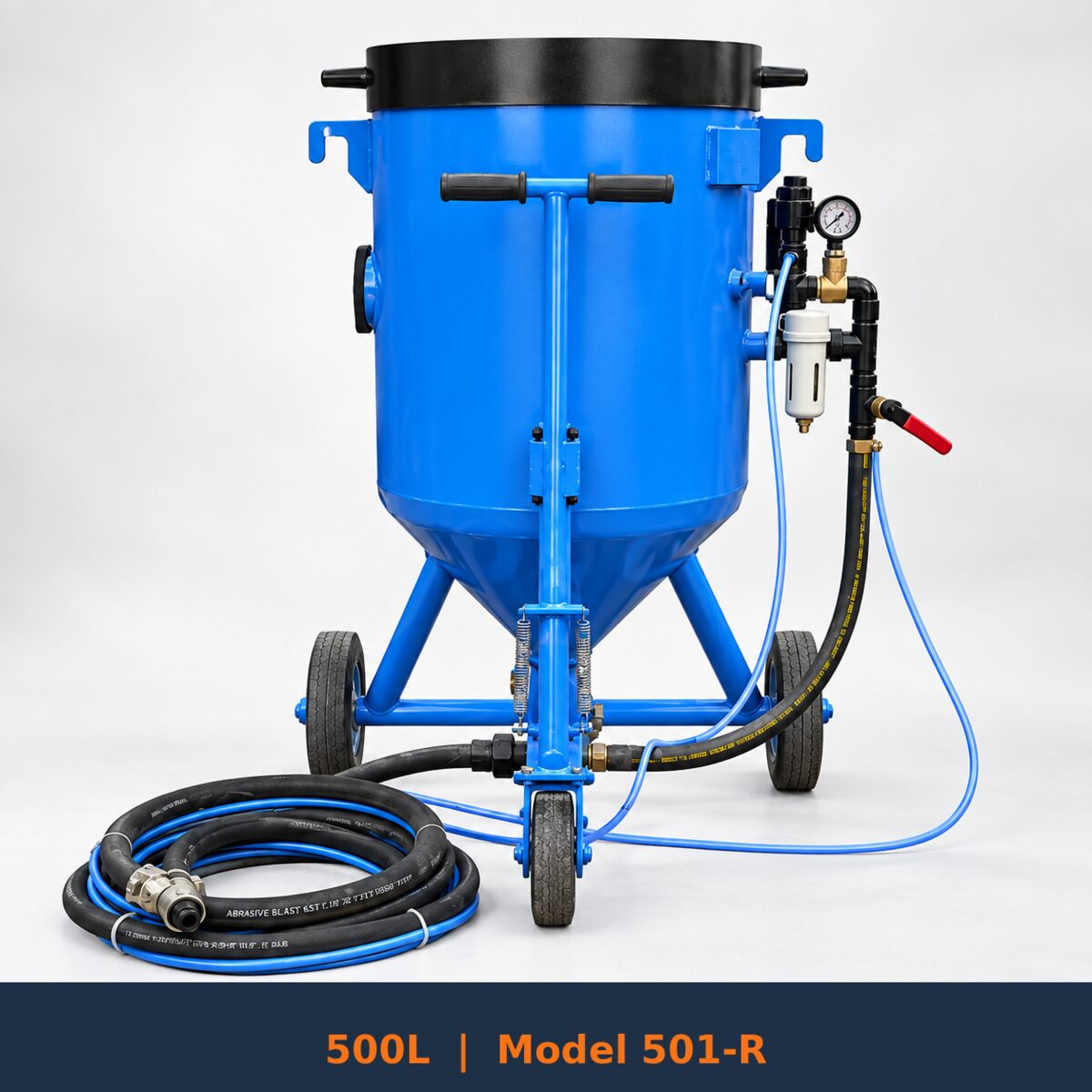

Blast Pot 500L (Model 501-R)
Large pressure blast pot with 500L metallic capacity, 230L sand capacity, 11-15 sq.m/hr cleaning rate. Workhorse for heavy industrial use.
Home / Blasting Machines / Blast Pot 500L (Model 501-R)
Machine
Portable pressure blast pot
Use
Heavy industrial blasting, large structures, tanks
Industry
Shipbuilding, oil & gas, infrastructure
How It Works
Compressed air pushes abrasive media from the pressure pot through a 7.5m blast hose and 8mm nozzle onto the surface.
The Model 501-R is our workhorse blast pot, designed for heavy industrial use. Its 500L capacity and 7.5m hose provide extended blasting time and reach.
Technical Specifications
| Metallic Capacity | 500 Kg |
| Sand Capacity | 230 Kg |
| Volume | 142 L |
| Height | 1370 mm |
| Diameter | 615 mm |
| Weight | 180 Kg |
| Nozzle | 8mm |
| Hose ID | 25mm |
| Hose Length | 7.5m |
| Cleaning Rate | 11-15 sq.m/hr |
| Air Req | 3.85 m³/min (135 CFM) |
