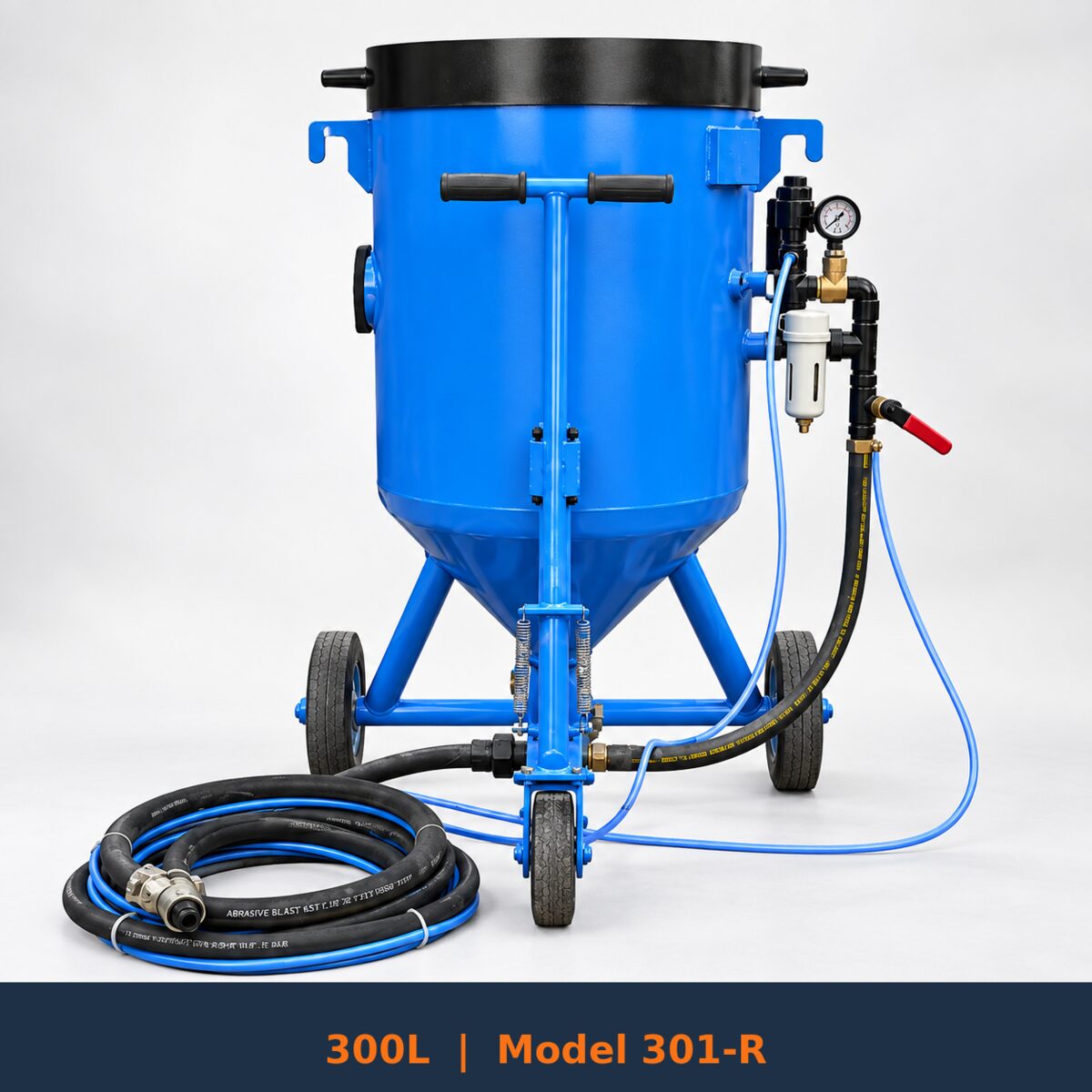

Blast Pot 300L (Model 301-R)
Mid-size pressure blast pot with 300L metallic capacity, 130L sand capacity, 5-9 sq.m/hr cleaning rate. Great for medium industrial work.
Home / Blasting Machines / Blast Pot 300L (Model 301-R)
Machine
Portable pressure blast pot
Use
Medium industrial blasting, structural steel, pipelines
Industry
Construction, shipbuilding, oil & gas
How It Works
Compressed air pushes abrasive media from the pressure pot through a 5m blast hose and 6mm nozzle onto the surface.
The Model 301-R offers the perfect balance of portability and productivity. Its 300L capacity handles medium industrial blasting with ease.
Technical Specifications
| Metallic Capacity | 300 Kg |
| Sand Capacity | 130 Kg |
| Volume | 85 L |
| Height | 1290 mm |
| Diameter | 460 mm |
| Weight | 140 Kg |
| Nozzle | 6mm |
| Hose ID | 19mm |
| Hose Length | 5m |
| Cleaning Rate | 5-9 sq.m/hr |
| Air Req | 2.41 m³/min (85 CFM) |
